Specifications
| PP fabric (Nylon6.6fabric) | Execution standard | unit | Model | |||||
| EP630 | EE630 | SW630 | ||||||
| Warp | Weft | Warp | Weft | Warp | Weft | |||
| Raw material | - | - | Warp：Polyester Yarn Weft：Nylon-6.6 Yarn |
Warp：Polyester Yarn Weft：Polyester Yarn |
Warp：Polyester Yarn Weft：Nylon-6.6 Yarn |
|||
| Breaking strength | GB/T 31334.5-2017 | N/cm | ≥7300 | ≥1700 | ≥8000 | ≥1300 | ≥6250 | ≥2500 |
| Elongation at break | GB/T 31334.5-2017 | % | ≥14 | ≤45 | ≥14 | ≤45 | ≥18 | ≤45 |
| Hot air shrinkage | GB/T 31334.1-2015 | % | ≤3.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤2.0 | ≤1.0 |
| Bond strength | GB/T 31334.4-2017 | N/mm | ≥8.0 | |||||
| Square dry weight | GB/T 31334.6-2020 | g/m² | 2580±100 | 2370±100 | 2030±60 | |||
| Thickness | GB/T 31334.6-2020 | mm | 3.1±0.3 | 2.9±0.3 | 2.7±0.2 | |||
| Width | GB/T 31334.6-2020 | cm | 50~310 | |||||
| Structure | 2/2 twill pattern | 2/2 twill pattern | Diameter direct rotation | |||||
Application
Rubber impregnated canvas is an ideal rubber skeleton material, widely used in the production of conveyor belts, V-belts, rubber pipes, elevator handrails, rubber tracks, rail transit shock absorbers, subsea oil pipes, soft oil tanks, etc
 |
 |
 |
 |

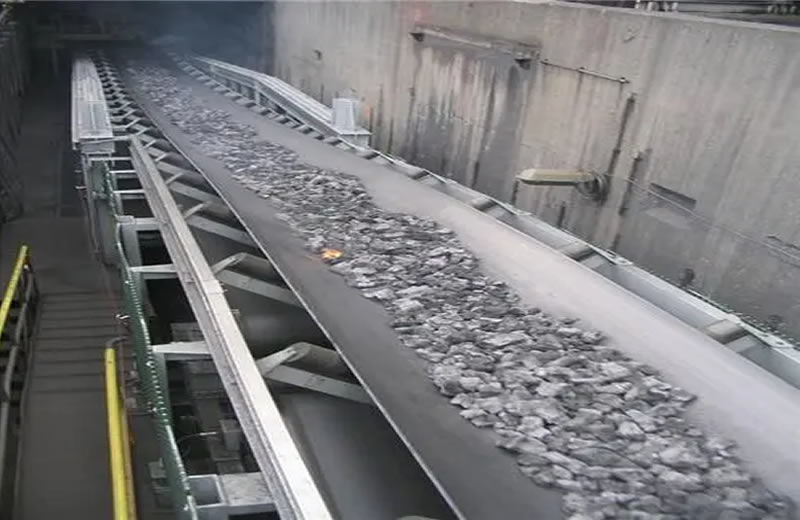

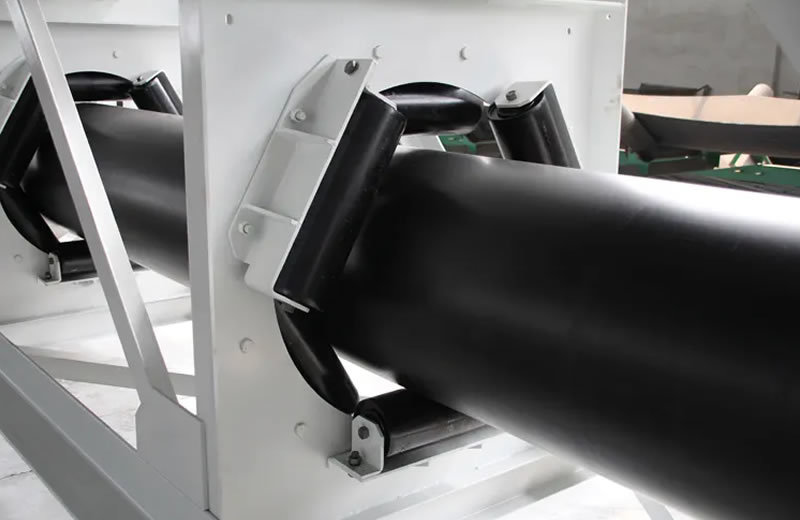

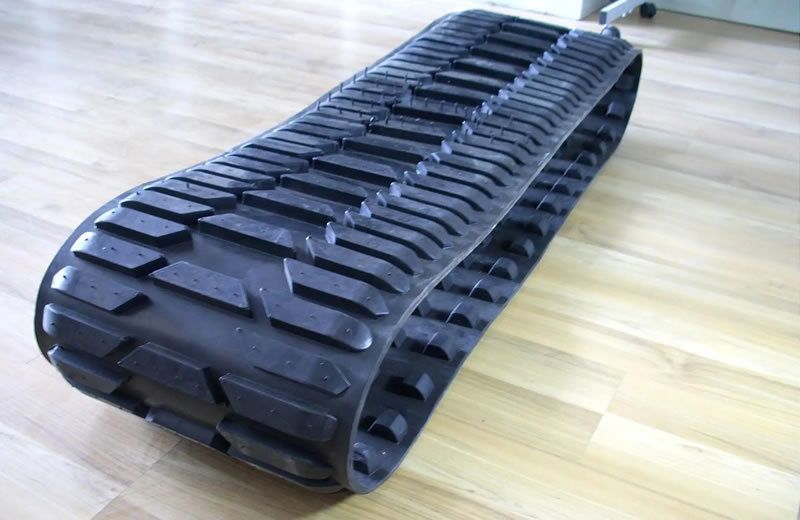

| Production conveyor belt | Tubular conveyor belt | Rubber track | High Temperature Resistant Conveyor Belt |
 |
 |
 |
 |

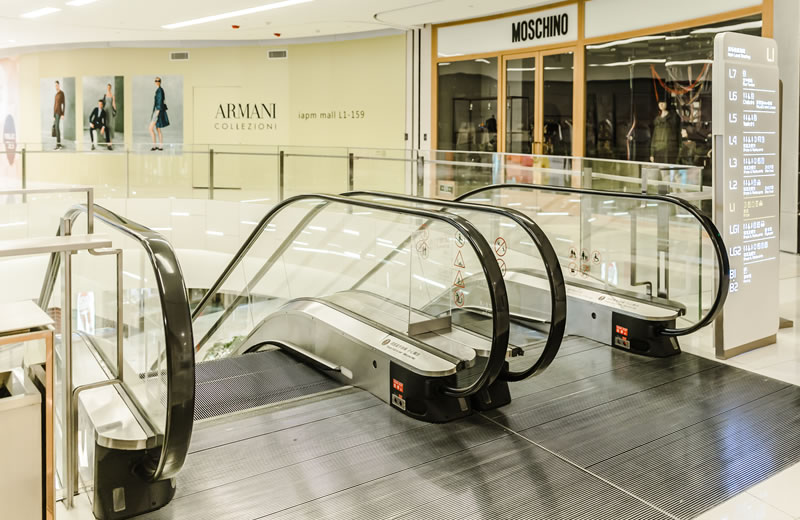

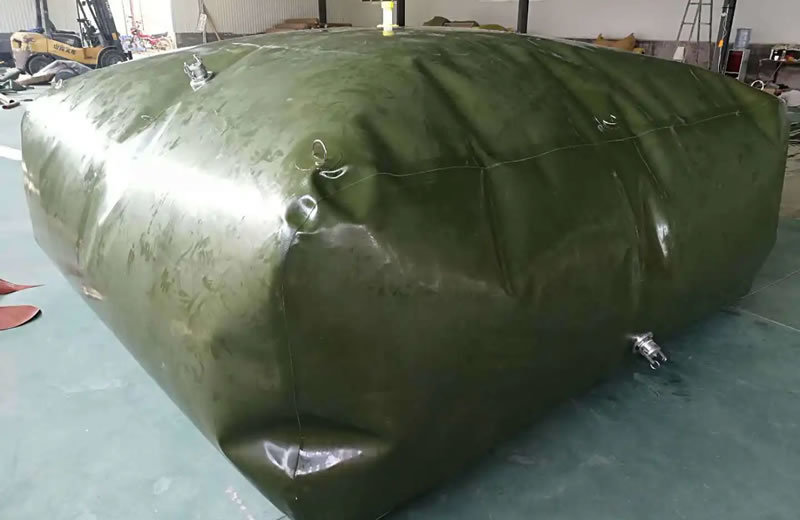

| Membraneous oil tank | Elevator handrail | Rail transit shock-absorbing pad | Submarine pipeline |

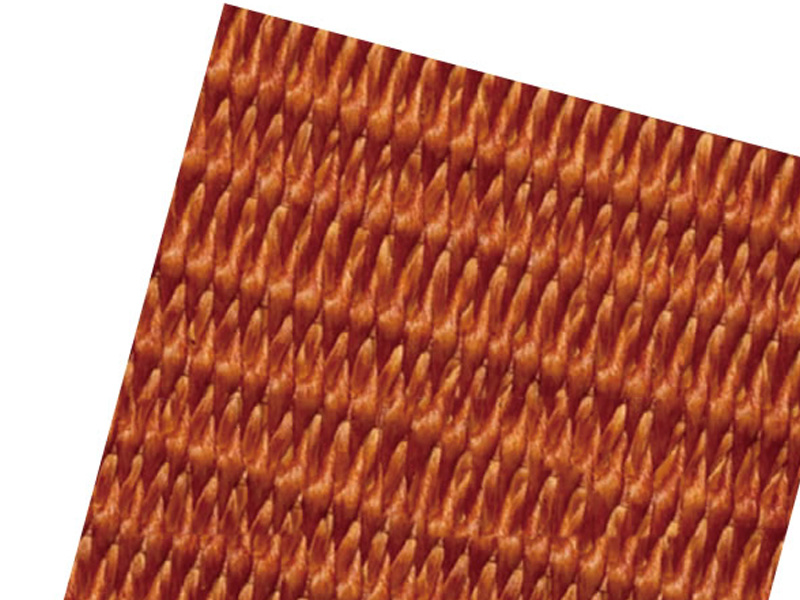

EE canvas dipped in glue
EE canvas dipped in glue
Less stretch
High adhesion
High adhesion
High impact resistance
FAQ
Can I have my own custom product?
Yes. oem and odm can be provided, including design, logo, packaging, etc.
What is the minimum order quantity?
It depends on the product.
What are the terms of payment?
Wire transfer or letter of credit, Western Union, Alipay, etc.
When is the delivery time?
Inventory orders within 7-15 days, for oem and odm orders, the specific time depends on the actual situation.
Can I take samples for testing?
Yes, samples can be sent for testing before bulk ordering.
Do you have pre-shipment inspection procedures?
Yes, we always test the products before delivery.
Application field
Impregnated canvas is an ideal rubber skeleton material, which is widely used in the production of conveyor belt, V-belt, rubber pipe, elevator handrail belt, rubber track, rail transit cushion, submarine oil pipe, soft oil tank and so on
